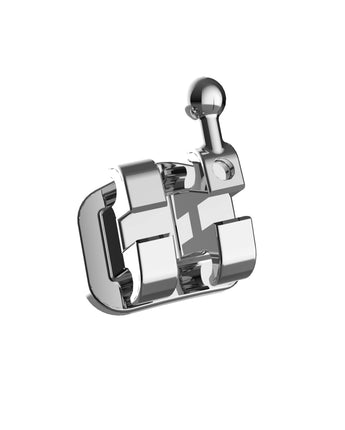

Affinity Basic Metallbrackets für die Kieferorthopädie – Dontix

Affinity Basic Metal Brackets – Roth/MBT, .018/.022

~~€11,95~~ €9,25 DGKFO Angebot

Shipping calculated at checkout.

Affinity Basic metal brackets for fixed orthodontic appliances. Select Roth or MBT, .018″ or .022″ slot, and hook configuration from the variants.

Product variants

Item number: AB-R181

Available to order

Quantity

Pack contents: 20 brackets per set (upper and lower arches, 5–5)

Prices exclude VAT. Shipping costs and conditions

Germany: €6.90 plus VAT; free shipping from a net order value of €250.

14-day invoice terms apply only to practices in Germany. Customers in other European countries pay in advance.

✓ Dispatch the same working day for orders placed by 12:00

✓ Exclusively for business customers, orthodontic practices and dental centres

✓ A personal contact for your questions

Delivery & shipping

Orders received by 12:00 on working days are usually dispatched the same working day when the goods are available. Shipping costs and delivery terms depend on the destination and order value.

Shipping policy

Relevant accessories

Selected accessories for your practice. Choose the required version before ordering.

Bracket Placement Tweezers
€11,90 /
Bracket Positioning Gauge
€19,90 / Choose options
Bracket Tray Holders
~~€9,90~~ €7,43 / Choose options
Orthodontic Relief Wax
~~€21,95~~ €14,99 /

Product details

Compare brackets →

Affinity Basic metal brackets for fixed orthodontic appliances. Select Roth or MBT, .018″ or .022″ slot, and hook configuration from the variants.

Anatomically shaped mesh base
Slim, low profile with colour marking
20 brackets per set for upper/lower 5–5

Torque, angulation and in/out

Metal brackets. Torque and angulation in degrees (°), in/out in millimetres (mm).

Prescription Roth – Slot .018″ / .022″

The following values apply to both available slot sizes.

Upper arch

Upper arch	UR5	UR4	UR3	UR2	UR1	UL1	UL2	UL3	UL4	UL5
Torque (°)	−7°	−7°	0°	8°	12°	12°	8°	0°	−7°	−7°
Angulation (°)	0°	0°	11°	9°	5°	5°	9°	11°	0°	0°
In/Out (mm)	0.55	0.55	0.55	0.80	0.70	0.70	0.80	0.55	0.55	0.55

Lower arch

Lower arch	LR5	LR4	LR3	LR2	LR1	LL1	LL2	LL3	LL4	LL5
Torque (°)	−22°	−17°	−11°	−1°	−1°	−1°	−1°	−11°	−17°	−22°
Angulation (°)	0°	0°	5°	0°	0°	0°	0°	5°	0°	0°
In/Out (mm)	0.55	0.55	0.55	0.80	0.80	0.80	0.80	0.55	0.55	0.55

Prescription MBT – Slot .018″ / .022″

The following values apply to both available slot sizes.

Upper arch

Upper arch	UR5	UR4	UR3	UR2	UR1	UL1	UL2	UL3	UL4	UL5
Torque (°)	−7°	−7°	0°	10°	17°	17°	10°	0°	−7°	−7°
Angulation (°)	0°	0°	8°	8°	4°	4°	8°	8°	0°	0°
In/Out (mm)	0.55	0.55	0.55	0.80	0.70	0.70	0.80	0.55	0.55	0.55

Lower arch

Lower arch	LR5	LR4	LR3	LR2	LR1	LL1	LL2	LL3	LL4	LL5
Torque (°)	−17°	−12°	−6°	−6°	−6°	−6°	−6°	−6°	−12°	−17°
Angulation (°)	0°	0°	3°	0°	0°	0°	0°	3°	0°	0°
In/Out (mm)	0.55	0.55	0.55	0.80	0.80	0.80	0.80	0.55	0.55	0.55

UR/UL: upper right/left. LR/LL: lower right/left. Numbers 1–5 identify tooth positions from the midline.

MBT™ is a trademark of Solventum or its affiliates (formerly 3M Unitek). The name identifies the available prescription.
