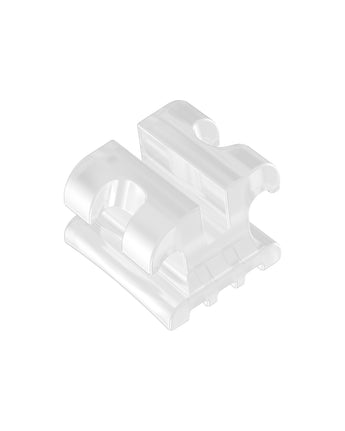

Vintera Ceramic Keramikbracket – schräge Vorderansicht mit Slot und Ligaturflügeln
Vintera Ceramic Keramikbracket – Rückansicht der strukturierten Klebebasis
Vintera Ceramic Keramikbracket – schräge Vorderansicht mit Slot und Ligaturflügeln
Vintera Ceramic Keramikbracket – Rückansicht der strukturierten Klebebasis

Vintera Ceramic Brackets

€36,90
Shipping calculated at checkout.

Vintera ceramic brackets for fixed orthodontic appliances. Select Roth or MBT, slot size and set configuration.

Prescription
Slot size
set
Item number: ACB-R18
In stock

Prices exclude VAT. Shipping costs and conditions

Germany: €6.90 plus VAT; free shipping from a net order value of €250.

14-day invoice terms apply only to practices in Germany. Customers in other European countries pay in advance.

✓ Dispatch the same working day for orders placed by 12:00
✓ Exclusively for business customers, orthodontic practices and dental centres
✓ A personal contact for your questions
Delivery & shipping

Orders received by 12:00 on working days are usually dispatched the same working day when the goods are available. Shipping costs and delivery terms depend on the destination and order value.

Shipping policy
Prescription
Slot size
set

Relevant accessories

Selected accessories for your practice. Choose the required version before ordering.

Product details

Compare brackets →

Vintera ceramic brackets for fixed orthodontic appliances. Select Roth or MBT, slot size and set configuration.

  • Slim, low profile with a smooth surface
  • Five-groove base according to product information
  • Slots: .018″ or .022″

Torque, angulation and in/out

Ceramic brackets. Torque and angulation in degrees (°), in/out in millimetres (mm).

Prescription Roth – Slot .018″ / .022″

The following values apply to both available slot sizes.

Upper arch

Upper archUR5UR4UR3UR2UR1UL1UL2UL3UL4UL5
Torque (°)−7°−7°0°8°12°12°8°0°−7°−7°
Angulation (°)0°0°11°9°5°5°9°11°0°0°
In/Out (mm)0.550.550.550.800.700.700.800.550.550.55

Lower arch

Lower archLR5LR4LR3LR2LR1LL1LL2LL3LL4LL5
Torque (°)−22°−17°−11°−1°−1°−1°−1°−11°−17°−22°
Angulation (°)0°0°5°0°0°0°0°5°0°0°
In/Out (mm)0.550.550.550.800.800.800.800.550.550.55

Prescription MBT – Slot .018″ / .022″

The following values apply to both available slot sizes.

Upper arch

Upper archUR5UR4UR3UR2UR1UL1UL2UL3UL4UL5
Torque (°)−7°−7°0°10°17°17°10°0°−7°−7°
Angulation (°)0°0°8°8°4°4°8°8°0°0°
In/Out (mm)0.550.550.550.800.700.700.800.550.550.55

Lower arch

Lower archLR5LR4LR3LR2LR1LL1LL2LL3LL4LL5
Torque (°)−17°−12°−6°−6°−6°−6°−6°−6°−12°−17°
Angulation (°)0°0°3°0°0°0°0°3°0°0°
In/Out (mm)0.550.550.550.800.800.800.800.550.550.55

UR/UL: upper right/left. LR/LL: lower right/left. Numbers 1–5 identify tooth positions from the midline.

MBT™ is a trademark of Solventum or its affiliates (formerly 3M Unitek). The name identifies the available prescription.
